Home 2010 Chrysler PT Cruiser Classic 2.4L L4 - Gas Front Suspension, Strut and Cradle

Front Suspension, Strut and Cradle for 2010 Chrysler PT Cruiser

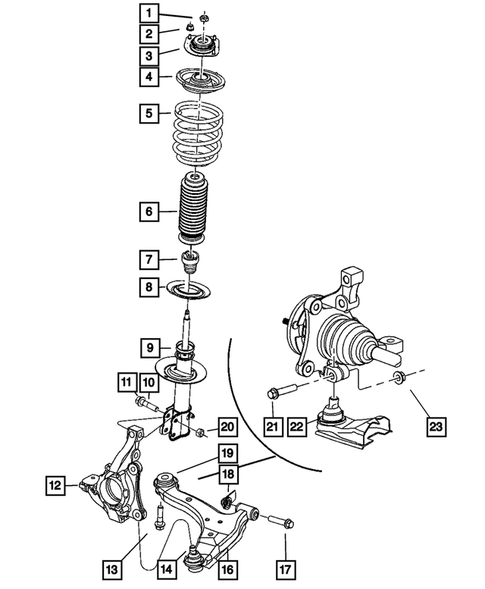

Front Suspension, Strut and Cradle for 2010 Chrysler PT Cruiser #0

Front Suspension, Strut and Cradle for 2010 Chrysler PT Cruiser #1

Front Suspension, Strut and Cradle for 2010 Chrysler PT Cruiser #0

1

10

11

12

13

14

16

17

18

19

2

20

21

22

23

3

4

5

6

7

8

9

No.

Part # / Description / Price

Price

N/A

4880406AA - Front Suspension: Ball Joint Fitting for Mopar Image

Ball Joint Fitting

Mopar

Mopar

Description: Zirc

1

6505116AA - Front Suspension: Nut for Mopar Image

Nut

Mopar

Mopar

Description: M14X2. Use With Original Strut

MSRP $15.00

$10.83

MSRP $15.00

$10.83

2

6101831 - Front Suspension: Hex Flange Nut for Mopar Image

Hex Flange Nut

Mopar

Mopar

Description: M8x1.25. Rear PDC Bracket To Rear Mounting Bracket

MSRP $9.35

$6.78

MSRP $9.35

$6.78

3

5272226 - Front Suspension: Strut Mount for Mopar Image

Strut Mount, Upper Front

Mopar

Mopar

4

5272227 - Front Suspension: Suspension Strut Seat And Bearing for Mopar Image

Suspension Strut Seat And Bearing, Upper

Mopar

Mopar

Description: Spring Seat

5

5272710AB - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDE SDF] [ZCK, ZRK]

5

4656525AE - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCE, ZRE]

5

4656524AE - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCD, ZRD]

5

4656526AF - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCF, ZRF]

5

4656523AD - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCC, ZRC]

5

4656527AD - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCG, ZRG]

5

4656528AD - Front Suspension: Front Coil Spring for Mopar Image

Front Suspension Coil Spring

Mopar

Mopar

Description: [SDC, SDA, SDF] [ZCH, ZRH]

6

4656943AC - Front Suspension: Strut Shield for Mopar Image

Strut Shield

Mopar

Mopar

Description: Dust

7

5272223AC - Front Suspension: Jounce Bumper for Mopar Image

Jounce Bumper

Mopar

Mopar

Description: (Front)

8

4656083 - Front Suspension: Spring Isolator for Mopar Image

Spring Isolator, Lower

Mopar

Mopar

9

5272981AC - Front Suspension: Strut Damper for Mopar Image

Strut Damper ²

Mopar

Mopar

9

4656697AF - Front Suspension: Strut Damper for Mopar Image

Strut Damper ²

Mopar

Mopar

9

4656459AD - Front Suspension: Strut Damper for Mopar Image

Strut Damper ²

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.

Description: w/SDF

10

6505525AA - Front Suspension: Screw for Mopar Image

Screw, Strut To Knuckle

Mopar

Mopar

Description: M14x2.00x70.00

11

5019074AA - Front Suspension: Camber Adjustment Bolt Package for Mopar Image

Camber Adjustment Bolt Package, Mounting

Mopar

Mopar

Description: Strut to Knuckle-Contains 2 Each Items 10,20

12

5272486AC - Front Suspension: Front Knuckle, Right for Mopar Image

Front Knuckle, Right

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.

12

5272487AC - Front Suspension: Front Knuckle, Left for Mopar Image

Front Knuckle, Left

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION.

13

6506039AA - Front Suspension: Hex Head Screw for Mopar Image

Hex Head Screw

Mopar

Mopar

Description: M14x1.5x109.0. Hitch To Frame Upper

14

4656010AE - Front Suspension: Lower Control Arm Ball Joint Kit for Mopar Image

Lower Control Arm Ball Joint

Mopar

Mopar

Description: Less Seal Boot

16

4656730AN - Front Suspension: Lower Control Arm, Right for Mopar Image

Control Arm, Right

Mopar

Mopar

Description: Includes Items 14,15,22,19

16

4656731AN - Front Suspension: Lower Control Arm, Left for Mopar Image

Control Arm, Left

Mopar

Mopar

Description: Includes Items 14,15,22,19

17

6504742 - Front Suspension: Hex Head Screw And Washer for Mopar Image

Hex Head Screw And Washer, Mounting

Mopar

Mopar

Description: M14 x 2 x 115.0. LCA Front Pivot

18

6505595AA - Front Suspension: Nut for Mopar Image

Nut, Mounting

Mopar

Mopar

Description: M14X2. LCA Front Pivot Screw

19

4656012AF - Front Suspension: Control Arm Bushing for Mopar Image

Control Arm Bushing, Rear

Mopar

Mopar

Description: CONTROL ARM

20

6505232AA - Front Suspension: Nut for Mopar Image

Hex Flange Locking Nut

Mopar

Mopar

Description: M14X2.00

MSRP $6.00

$4.30

MSRP $6.00

$4.30

21

6501248 - Front Suspension: Hex Flange Head Bolt for Mopar Image

Hex Flange Head Bolt

Mopar

Mopar

Description: M12x1.75x57. Front Knuckle to Lower Control Arm

22

4656464AA - Front Suspension: Ball Joint Seal for Mopar Image

Ball Joint Seal

Mopar

Mopar

23

6501247 - Front Suspension: Nut for Mopar Image

Nut

Mopar

Mopar

Description: M12x1.75. Front Kunckle to Lower Control Arm

MSRP $8.90

$6.41

MSRP $8.90

$6.41

² This part contains hazardous materials. Extra shipping costs apply.

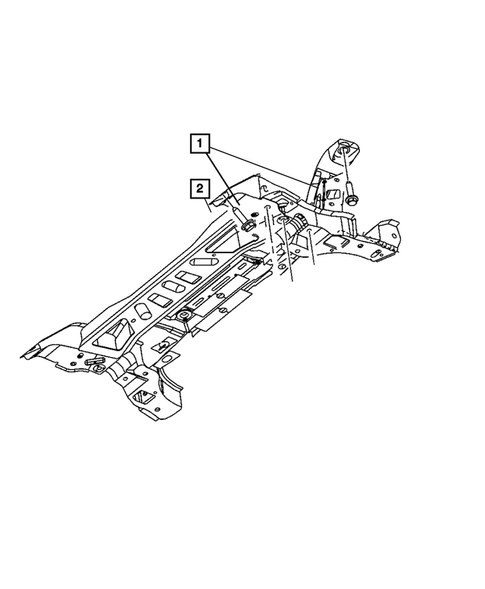

Front Suspension, Strut and Cradle for 2010 Chrysler PT Cruiser #1

1

2

No.

Part # / Description / Price

Price

1

6506038AA - Front Suspension: Hex Head Screw for Mopar Image

Hex Head Screw

Mopar

Mopar

Description: and Washer Hex Hd Cone Washer M14x2.00x60.00

2

5272962AE - Front Suspension: Front Suspension Crossmember for Mopar Image

Front Suspension Crossmember, Automatic Transmission

Mopar

Mopar

Notes: Engines: 2.4L I4 DOHC 16V SMPI ENGINE.

Description: [EDZ,EDT,EDV]
