Home 2004 Jeep Wrangler Unlimited 4.0L L6 - Gas Air Conditioner and Heater Plumbing

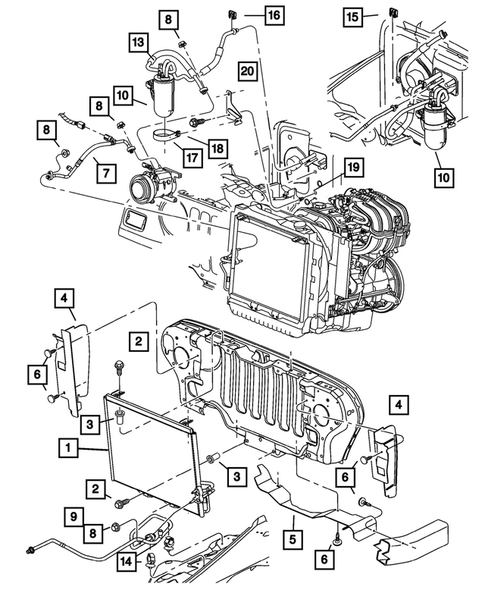

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler

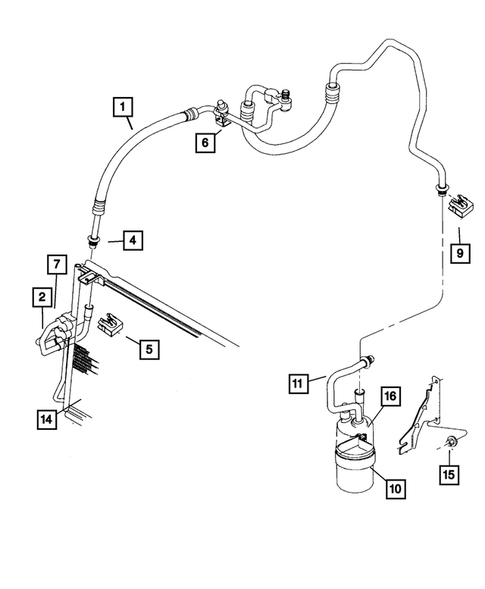

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler #2

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler #3

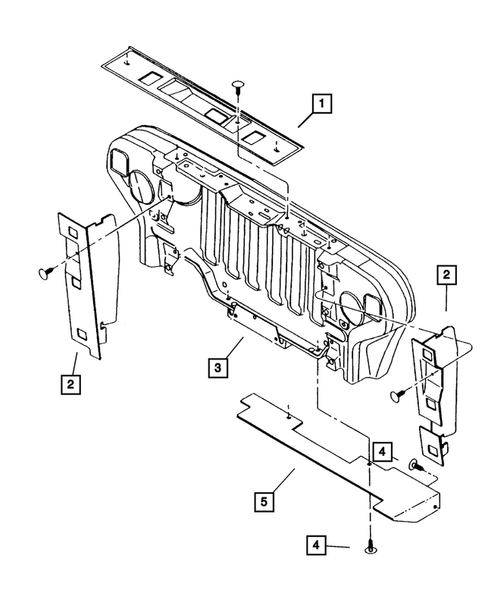

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler #4

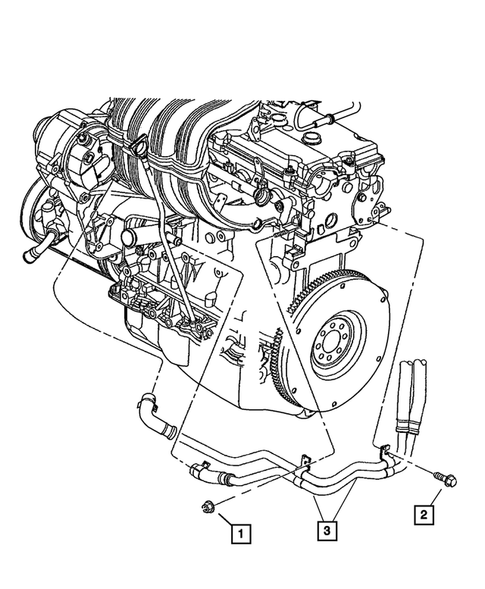

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler #5

No.

Part # / Description / Price

Price

N/A

A/c Line Bracket

55037529AA

Mopar

View Details

N/A

Well Nut

J4003120

Mopar

Description: .25-20x.63. Receives Bolt To Attach Condenser

View Details

N/A

A/c Discharge Line O Ring

4796565

Mopar

Description: 1/2 inch. To Drier. 1/2 Red.

View Details

N/A

A/c Suction Line O Ring

4796564

Mopar

Description: To Compressor

View Details

N/A

Liquid Line Orifice

5101886AA

Mopar

View Details

N/A

A/c Suction Line

55037602AD

Mopar

Description: After 10-2-02

View Details

N/A

Hex Nut

6036153AA

Mopar

Description: .437-14. A/C Line to Engine Block

View Details

N/A

A/c High Pressure Cut Off Switch

4897617AA

Mopar

View Details

N/A

Hex Head Bolt

154892AA

Mopar

Description: .25-20x.75. Attaches Condenser To Grille

View Details

A/c Discharge Line

55037599AE

Mopar

Description: Contains Items 2 to 7

MSRP $195.00

$128.76

MSRP $195.00

$128.76

A/c - Pressure Switch Kit

5096126AA

Mopar

Description: Includes Item # 22

View Details

A/c Liquid Line

55037581AE

Mopar

Description: After 10-2-02

View Details

A/c Line Clip

55036022

Mopar

Description: Vent Hose.

View Details

Air Conditioning Condenser

55037618AE

Mopar

Description: NOTE: 25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. After 10-2-02

View Details

Air Conditioning Condenser

55037618AH

Mopar

Description: NOTE: 25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. After 10-2-02

View Details

A/c Quick Disconnect Clip

4596152

Mopar

Description: Liquid Line

View Details

Refrigerant Label

55037555AC

Mopar

View Details

Accumulator Bracket

55036303

Mopar

View Details

Air Conditioning Accumulator

55037600AC

Mopar

View Details

A/c Low Pressure Cut Off Switch

5015872AC

Mopar

View Details

Accumulator Retaining Band

55037696AA

Mopar

View Details

A/c Check Valve Cap

4882335

Mopar

View Details

No.

Part # / Description / Price

Price

Air Conditioning Condenser

2AMC3082AA

Mopar

Description: NOTE: 25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab

View Details

Air Conditioning Condenser

55037618AE

Mopar

Description: NOTE: 25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. After 10-2-02

View Details

Air Conditioning Condenser

55037618AH

Mopar

Description: NOTE: 25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab. After 10-2-02

View Details

Hex Head Bolt

154892AA

Mopar

Description: .25-20x.75. Attaches Condenser To Grille

View Details

Well Nut

J4003120

Mopar

Description: .25-20x.63. Receives Bolt To Attach Condenser

View Details

Condenser Seal, Left

55036867

Mopar

Description: Push Pins Only Serviced With Seal

View Details

Condenser Seal, Right

55036866AC

Mopar

Description: Push Pins Only Serviced With Seal

View Details

Condenser Seal, Lower

55036369AB

Mopar

Description: Lower.

View Details

Push Pin, Right

6030441

Mopar

Description: M6.3X23.00. Wheelhouse Carpet Attach - 5 Per Side

MSRP $7.95

$5.75

MSRP $7.95

$5.75

Hex Nut-coned Washer Nut And Washer, Mounting

6506152AA

Mopar

Description: M8 x 1.25. Engine Oil Heat Exchange Tube To Water Pump

MSRP $11.30

$8.17

MSRP $11.30

$8.17

A/c Line Clip

55036022

Mopar

Description: Vent Hose.

View Details

A/c Quick Disconnect Clip

4596153

Mopar

Description: Quick (Suction) Connect

View Details

A/c Quick Disconnect Clip

4596152

Mopar

Description: Liquid Line

View Details

Accumulator Retaining Band

55037696AA

Mopar

View Details

M6 X 1.00 U-nut

6101442

Mopar

Description: M6x1.00. Radiator Upper Crossmember to Closer Brace

MSRP $8.90

$6.41

MSRP $8.90

$6.41

Cooler To Closure Panel Nut/rivet

6503245

Mopar

Description: License Bracket Attaching

MSRP $10.60

$7.68

MSRP $10.60

$7.68

No.

Part # / Description / Price

Price

N/A

A/c Quick Disconnect Clip

4596152

Mopar

Description: Liquid Line

View Details

N/A

Liquid Line Orifice

5101886AA

Mopar

View Details

N/A

A/c High Pressure Cut Off Switch

4897617AA

Mopar

View Details

N/A

Hex Head Bolt

154892AA

Mopar

Description: .25-20x.75. Attaches Condenser To Grille

View Details

N/A

Well Nut

J4003120

Mopar

Description: .25-20x.63. Receives Bolt To Attach Condenser

View Details

N/A

Hex Nut

6036153AA

Mopar

Description: .437-14. A/C Line to Engine Block

View Details

A/c Discharge Line

55037599AE

Mopar

Description: Contains Items 2 to 7

MSRP $195.00

$128.76

MSRP $195.00

$128.76

A/c Discharge Line O Ring

4796565

Mopar

Description: 1/2 inch. To Drier. 1/2 Red.

View Details

A/c Line Clip

55036022

Mopar

Description: Vent Hose.

View Details

Accumulator Retaining Band

55037696AA

Mopar

View Details

No.

Part # / Description / Price

Price

N/A

Heater Hose 1ft

HHR00034AA

Mopar

Description: 3/4". Return (Roll Stock)

View Details

Heater Return Hose

55038223AC

Mopar

View Details

Heater Return Hose

55038223AD

Mopar

MSRP $67.80

$46.58

MSRP $67.80

$46.58

Heater Supply Hose

55038128AC

Mopar

MSRP $73.60

$50.60

MSRP $73.60

$50.60

Hose Bracket

55035933

Mopar

View Details

No.

Part # / Description / Price

Price

Condenser Seal, Lower

55036369AB

Mopar

Description: Lower.

View Details

Condenser Seal, Right

55036866AC

Mopar

Description: Push Pins Only Serviced With Seal

View Details

Condenser Seal, Left

55036867

Mopar

Description: Push Pins Only Serviced With Seal

View Details

Push Pin, Right

6030441

Mopar

Description: M6.3X23.00. Wheelhouse Carpet Attach - 5 Per Side

MSRP $7.95

$5.75

MSRP $7.95

$5.75

No.

Part # / Description / Price

Price

Hex Nut-coned Washer Nut And Washer

6102440AA

Mopar

Description: M8 x 1.25. Liquid Line/Filter Drier to Shock Tower Mounting

MSRP $11.30

$8.17

MSRP $11.30

$8.17

Hex Head Tapping Screw & Washer, Mounting

6505178AA

Mopar

Description: M8x1.25x25.00. Tube and Hose Assembly to Rear Axle

MSRP $13.30

$9.56

MSRP $13.30

$9.56

Air Conditioner and Heater Plumbing for 2004 Jeep Wrangler
